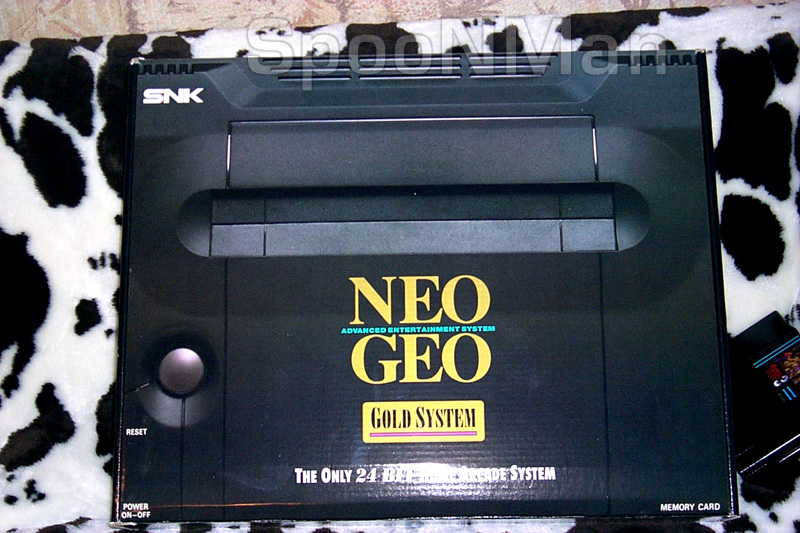

NEO·GEO Gold System AES Box (Mint/Uncirculated) Shipped directly from SNK [Torrance, CA]

Click for larger resolution

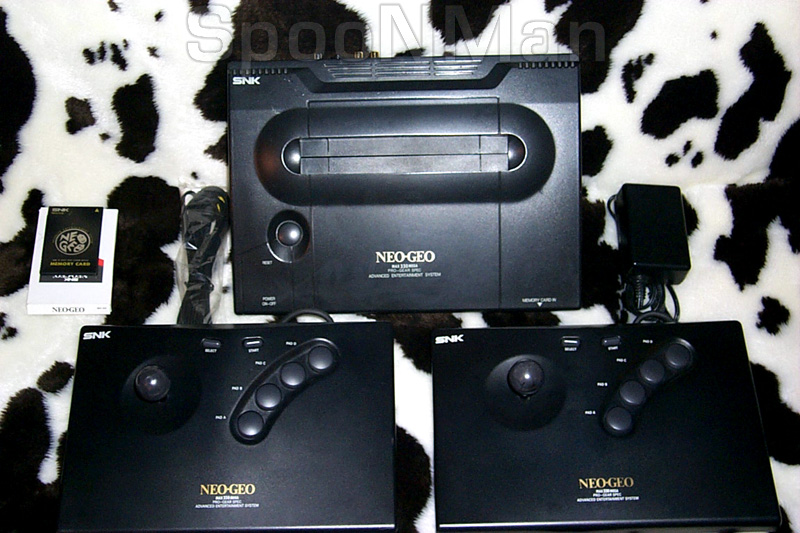

NEO·GEO Gold System AES Box (Mint/Uncirculated)+Baseball Stars Pro+Memory Card

Click for larger resolution

NEO·GEO CD Joystick Controllers x2 (brand new/boxed/mint)

Click for larger resolution


NEO·GEO CD Controller (Boxed/Controller mint)

Click for larger resolution

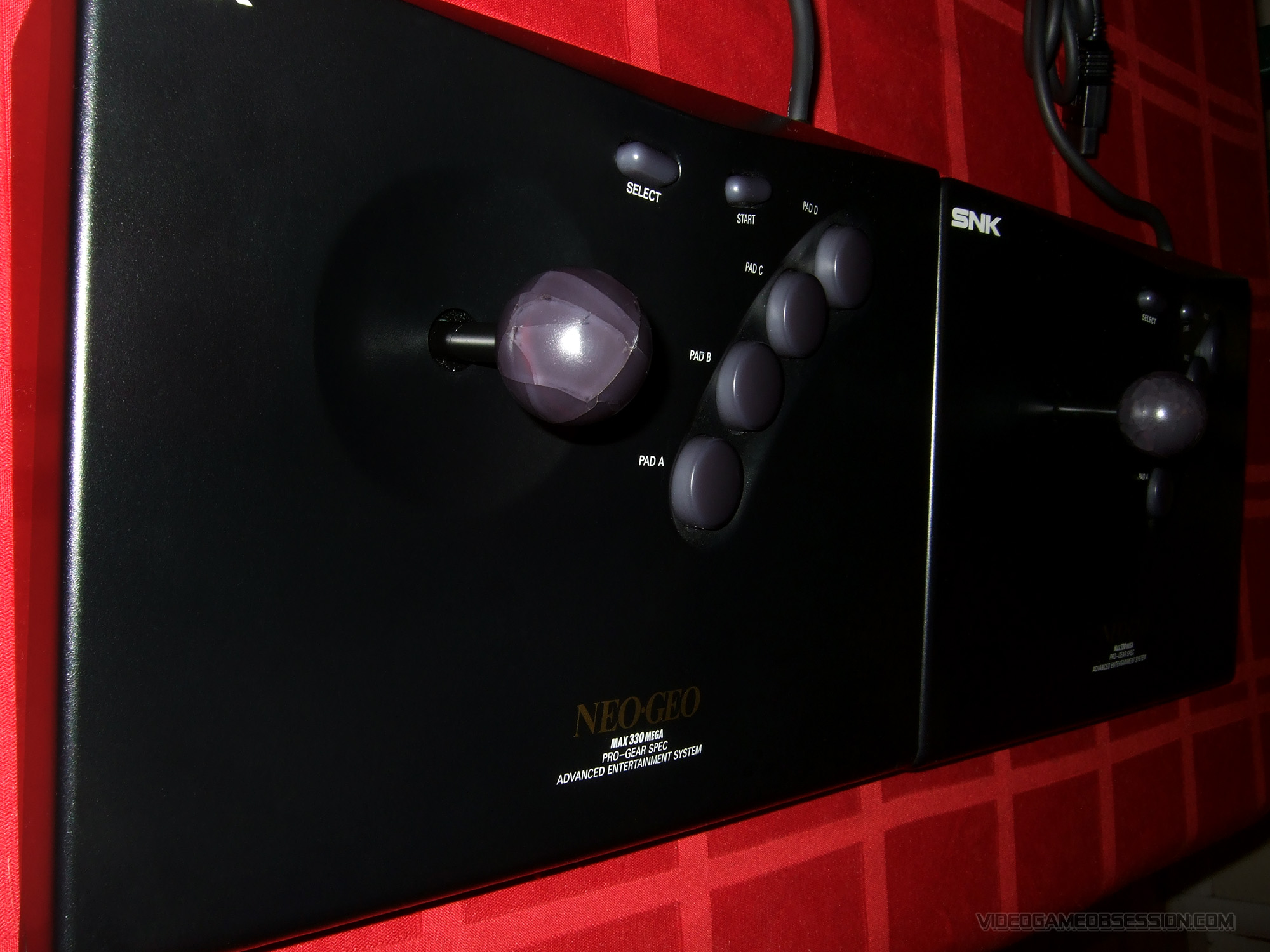

2 Original SNK NEO·GEO Controllers from the AES Gold System (mint)

Click for larger resolution

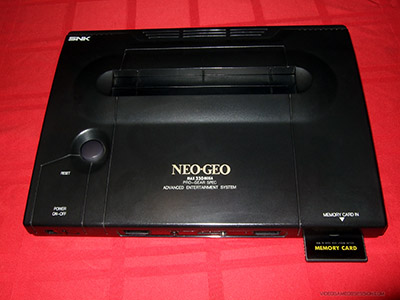

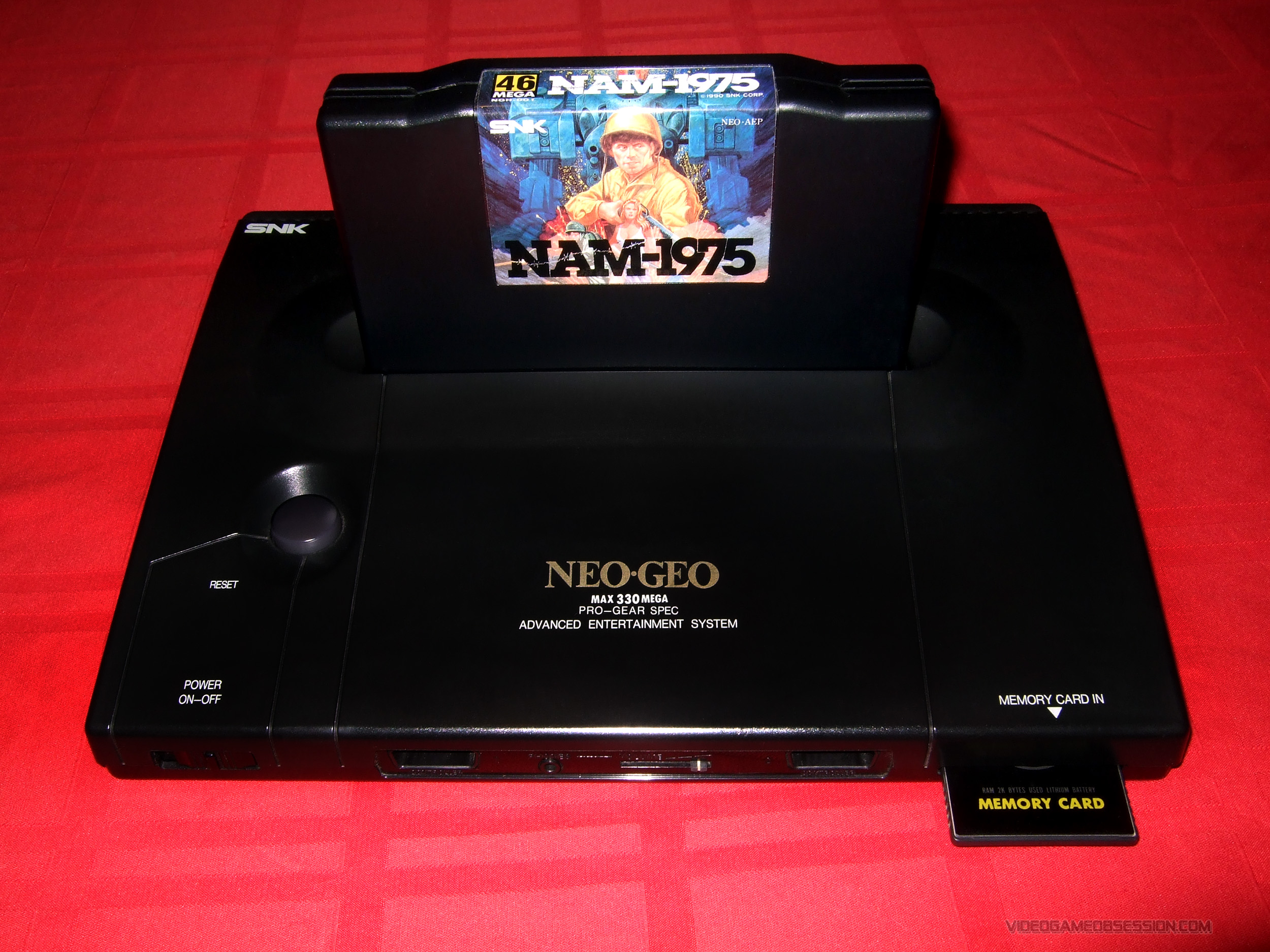

NEO·GEO AES Picture from 07/2018
Click for larger resolution
NEO·GEO AES ARCADE DEBUG BIOS / S-Video / Stereo Mod (by Jeff Kurtz 4/2000)





 Vid Problem 1 / Vid Problem 2
Click for larger resolution
NEO·SaveMasta V2 MEMORY CARD



NeoTurfMasta - "A quick release of a low cost version that supports 1 8k bank instead of 2 16k banks. The 8k chips are cheaper than the 32 and no switch will be needed. The 8k is still 4x larger than the original Neo memory card and it wont require a battery either."




NEO·GEO AES Control Pads in custom made box

Click for larger resolution

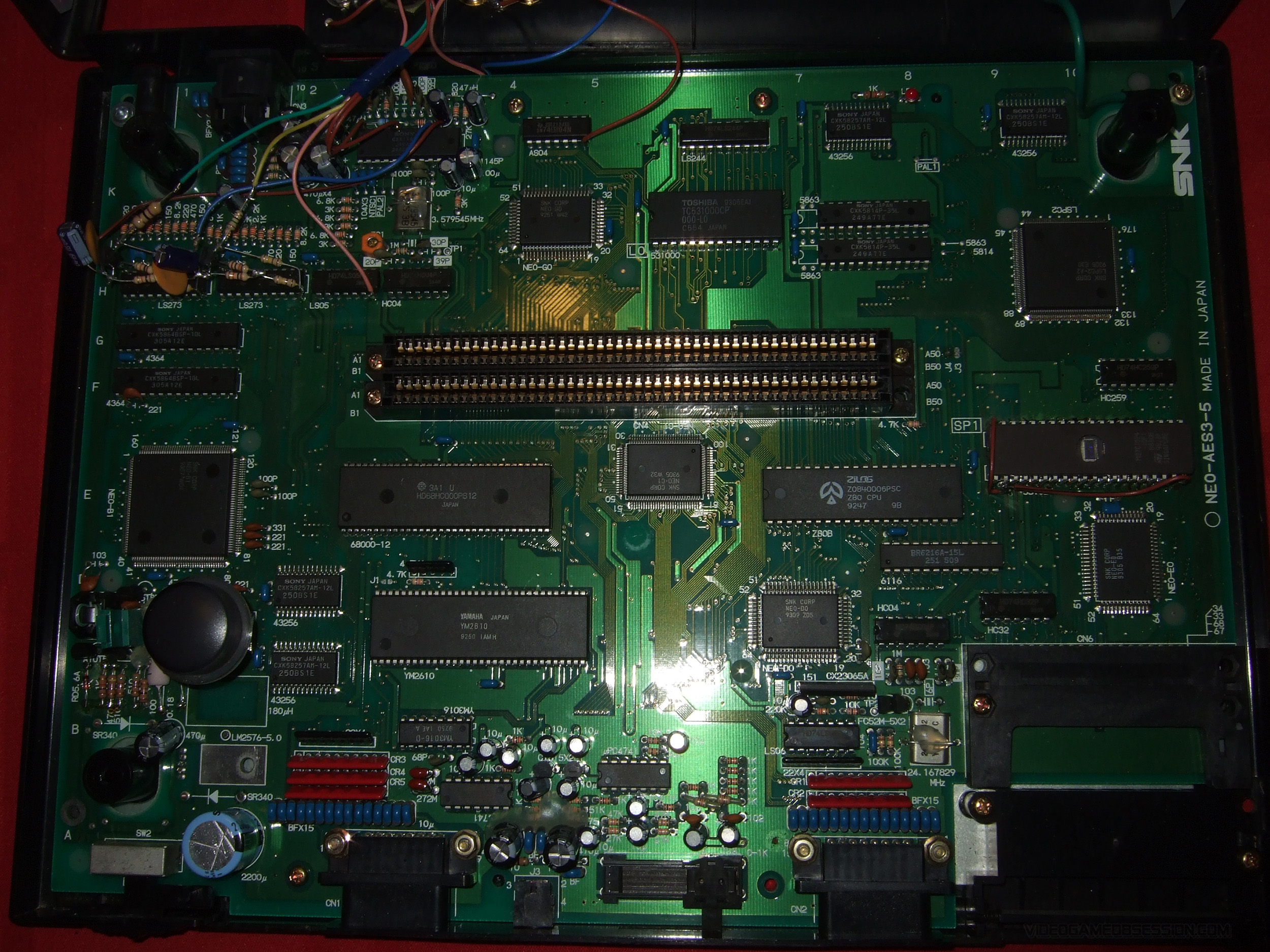

NEO·GEO (modified with S-Video/Stereo & Arcade BIOS)

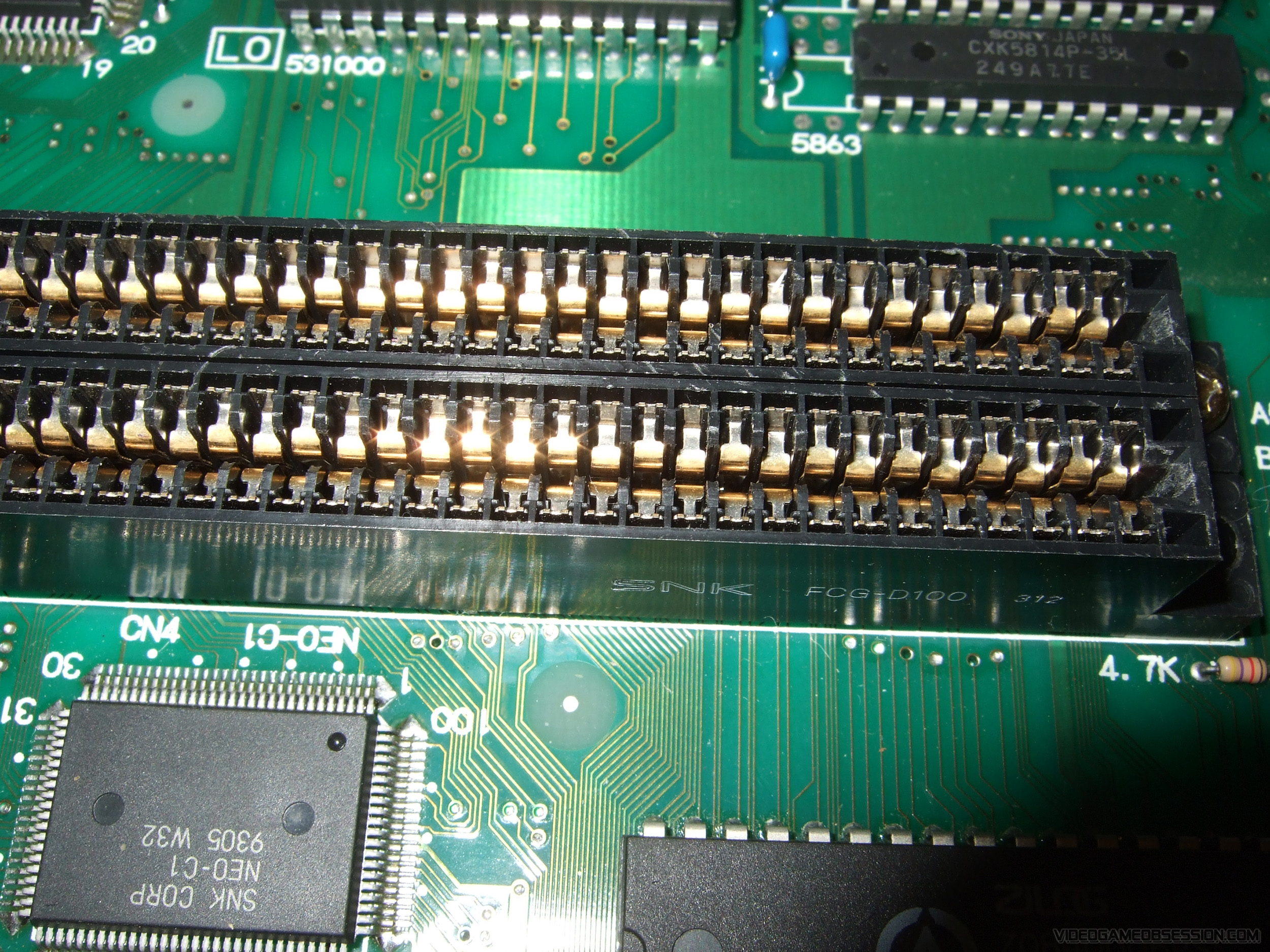

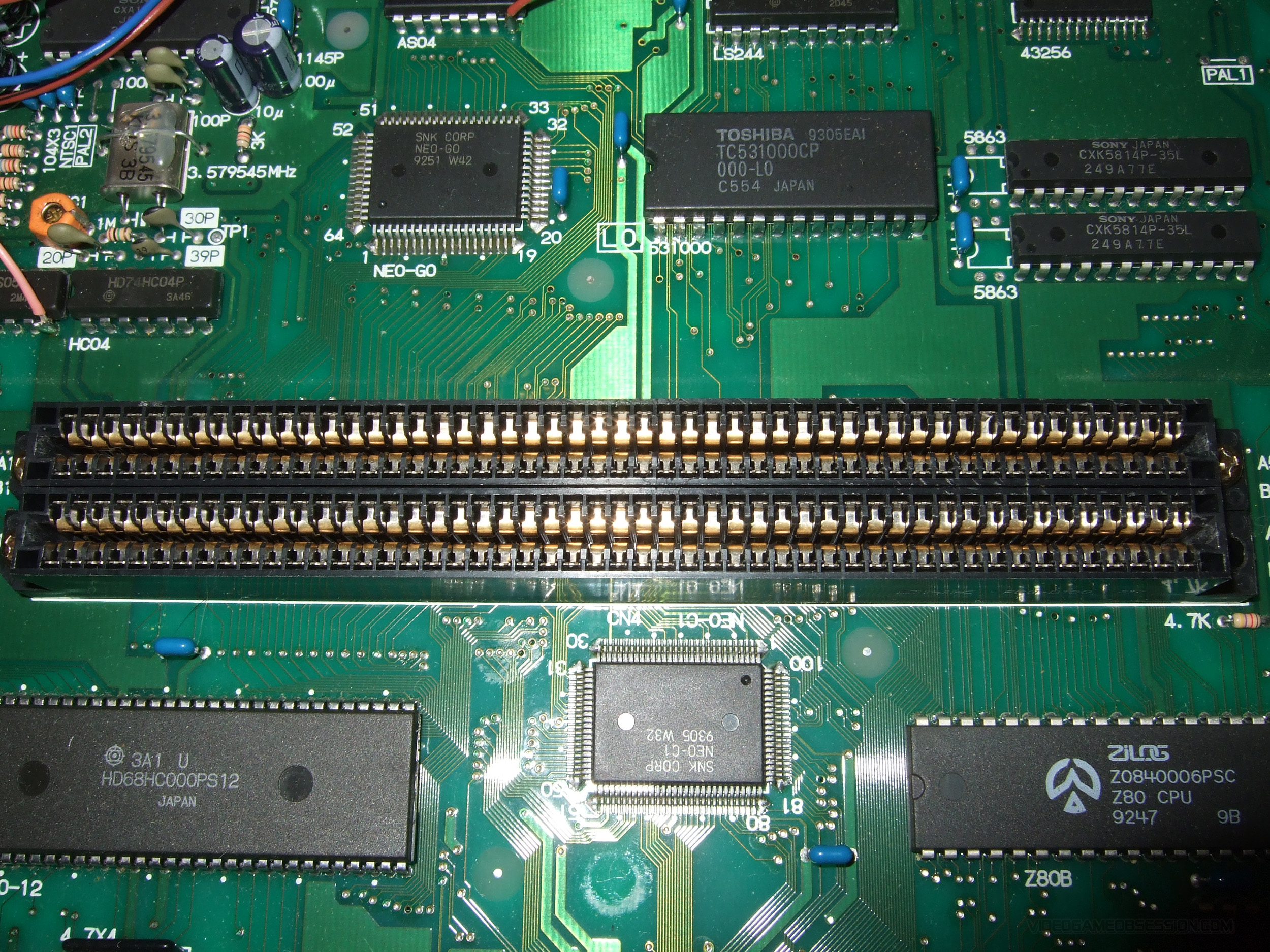

NEO·GEO AES/MVS SYSTEM SPECS

PROCESSOR

CPU: Motorola 68000 @12 MHz
CO-CPU: Zilog Z80 @4 MHz

MEMORY
Main memory (used by 68000): 64 KB
Main video memory: 84 KB
Video memory: 64 KB (32 KB x2)
Palette memory: 16 KB (8 KB x 2)
Fast video RAM: 4 KB (2 KB x 2)
Sound memory (Z80): 2 KB
DISPLAY
Resolution: 320×224 (304px in most games)
Color palette: 65,536
Maximum colors on screen: 4,096
Maximum sprites on screen: 381
Minimum sprite size: 1×2
Maximum sprite size: 16×512
Maximum sprites per scanline: 96
A/V output: RF, composite video, RGB
AUDIO

Sound chip: Yamaha YM2610
4 FM channels (4 operators per channel)
3 SSG channels (Similar to PSG, but with twice the resolution, optional envelope filters)
1 Noise channel
7 ADPCM channels (ADPCM-A: 6 ADPCM channels, fixed pitch, 18.5 kHz rate at 12-bit from 4-bit data. ADPCM-B: 1 ADPCM channel, variable pitch, 18.5–55.5 kHz rate)
Work RAM (sound): 2KB
Sound ROM 128KB on-board
up to 512KB sound ROM on cartridges
