Purchased from Krikzz on 11/25/2016 for $94.40 USD  / Krikzz ED Family Photos

EVERDDRIVE-N8 FEATURES:

• Famicom, NES, and Twin Famicom systems are supported.* Many NES/FC clones supported as well.
• Cart supports NES and FDS ROM images.
• Automatic disk side swap for FDS.
• Expansion audio.**
• Save State function
• Game Genie cheat code support.
• Automatically backs-up saves to SD card. There is no need to push reset before shutting down the system.***
• Mapper support can be extended via software updates. As easy as loading new mappers files on SD card.
• FAT / FAT16 / FAT32 file system formats are supported.
• Supports SD (SD & SDHC) cards up to 32GB.
• Quick loading of game files (approx. 4-8 seconds).

EVERDDRIVE-N8 HARDWARE:

• Powerful Cyclone II FPGA.
• 2 x 512Kbyte SRAM for PRG and CHR data.
• 128Kbyte battery backed memory. It write save data to SD.
• Max II CPLD to handle FPGA reconfiguration, BIOS and SD interfaces.
• 1Mbyte flash BIOS.
• Voltage shift buffers on PPU and CPU bus for matching levels between 5v NES bus and 3.3 EverDrive bus. Far better than simple resistor buffers at reducing noise and power consumption.

* Famicom version of cart requires Famicom to NES adapter to be used with NES. NES version of cart requires NES to Famicom adapter to be used with Famicom.
** Only Famicom can output expansion sound without modification. NES systems require modification to support this feature.
*** FDS is the only exception, user should push the reset button on system to get back to main menu before than shutting down the system, otherwise FDS save data will be lost.



Important notices:
At first boot, CIC chip may need reconfiguration. Look at this video for details.


Purchase from: Krikzz for $118 (as of 2/2/2017)

---

Downloads:
OS Version 16 (07/04/2017) VGO archive / Changelist
OS Update (Krikzz.com)
Development

---

Promo materials:
KRIKzz YouTube demo 1 / KRIKzz YouTube demo 2 / FigureItOut (Youtube) / Aleomark (Spanish) / Aleomark (English) / Omonim2007 (Russian)  / Gamester81(English)

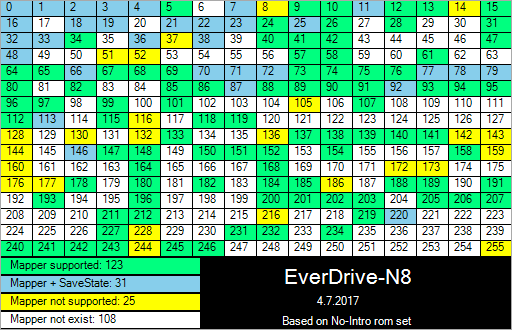

Total games: 2626
Supported games: 2587
Not supported games: 39
AS OF 07/04/2017

Other Media:

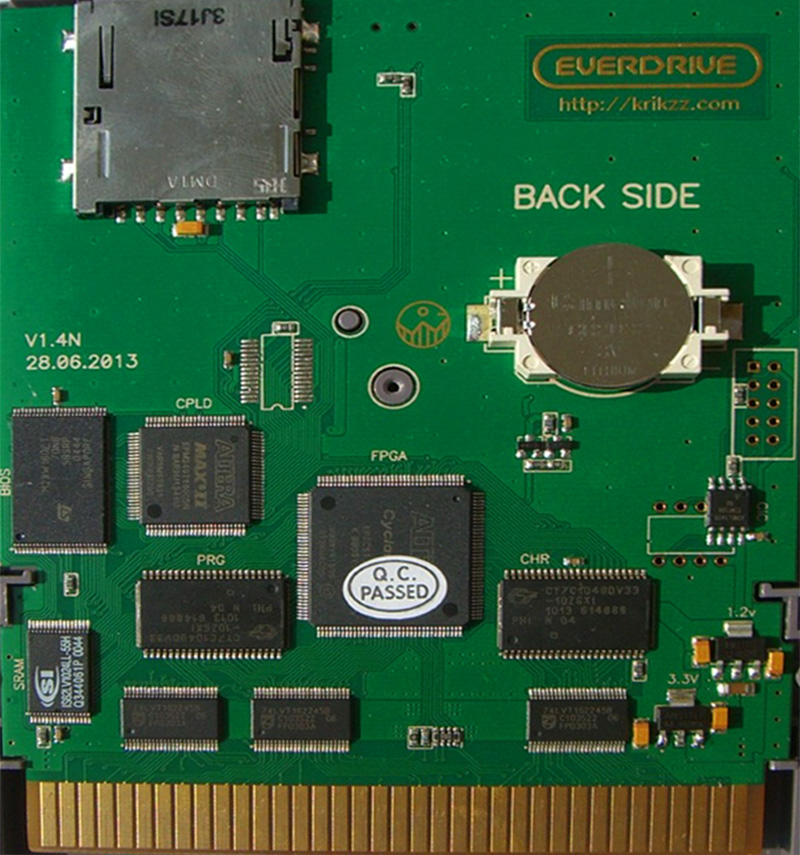

         FPGA Cyclone II board                           NES Cart Label
